High Capacity Radio Relay—IRR-B4(HCRR)

The High Capacity Radio Relay—IRR-B4(HCRR) is indigenously designed and developed by STUAM . It operates in Band –IV (4400 MHz to 5000 MHz) capable of Full-Duplex Data transfer up to 100 Mbps.

The High Capacity Radio Relay—IRR-B4(HCRR) is indigenously designed and developed by STUAM . It operates in Band –IV (4400 MHz to 5000 MHz) capable of Full-Duplex Data transfer up to 100 Mbps.

High Capacity Radio Relay—IRR-B4(HCRR) can be deployed for

1. Point to Point (P2P) Communication link:

Data rates supported : up to 100 Mbps for a range of 20 km and up to 40 Mbps for a range of 40 km in Fixed Frequency mode
Data rates supported : up to 8 Mbps for a range of 20 km in Frequency Hopping mod

2. Point to Multi Point (P2MP) Communication link

Data rates supported : for a range of 20 km with 8 Mbps aggregated data rate for outstations

3. Repeater mode

The system can also be configured to serve as a single hop repeater with 100 Mbps data rate for establishing Communication up to 40 km and with 34 mbps data rates for establishing communication up to 75 km

The system has inbuilt ECCM features such as Frequency hopping, Frequency evasion, Adaptive Frequency Control and Adaptive Power Control
The above features of IRR-B4 are also characterized by optimized transmit power and RF channel band width
System has E1, E3 and Ethernet base band interfaces, with both Electrical and Optical connectivity. System accepts 230 V AC and +48 V DC with auto changeover facility
System has Narrow beam antenna for P2P Communication and Sector Beam Antenna for P2MP Communication

High Capacity Radio Relay—IRR-B4(HCRR) ORU

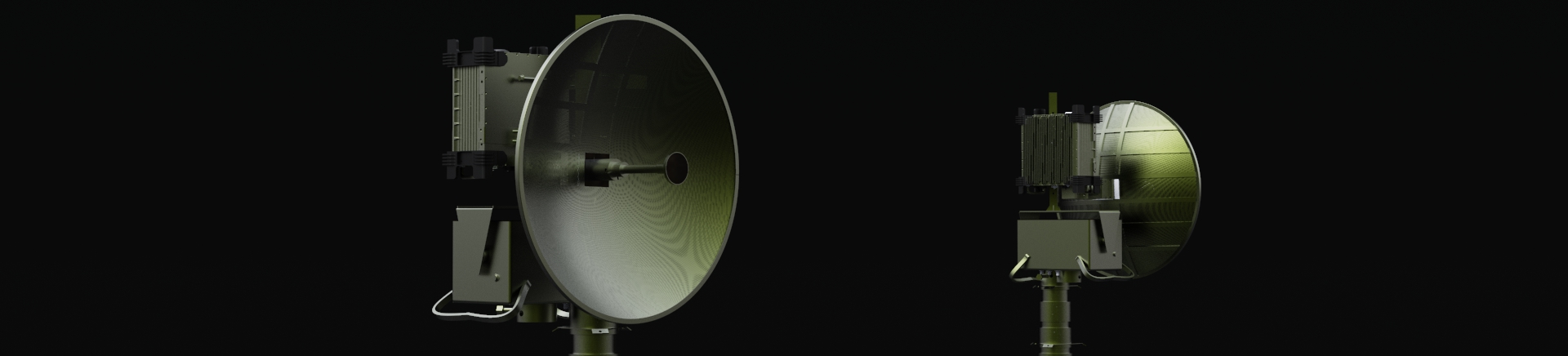

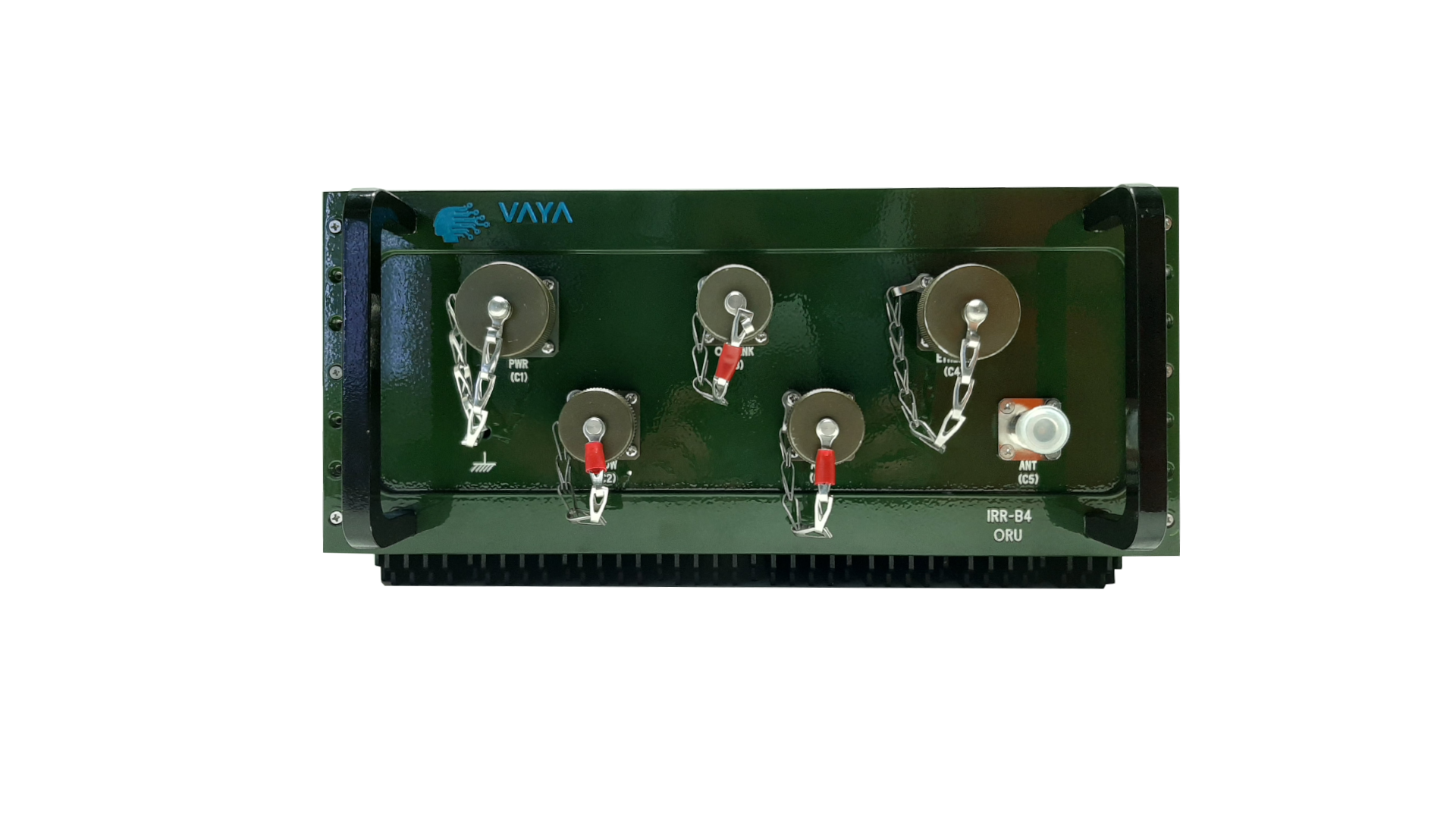

Outdoor Radio Unit (ORU)

High Capacity Radio Relay—IRR-B4(HCRR) IDPU

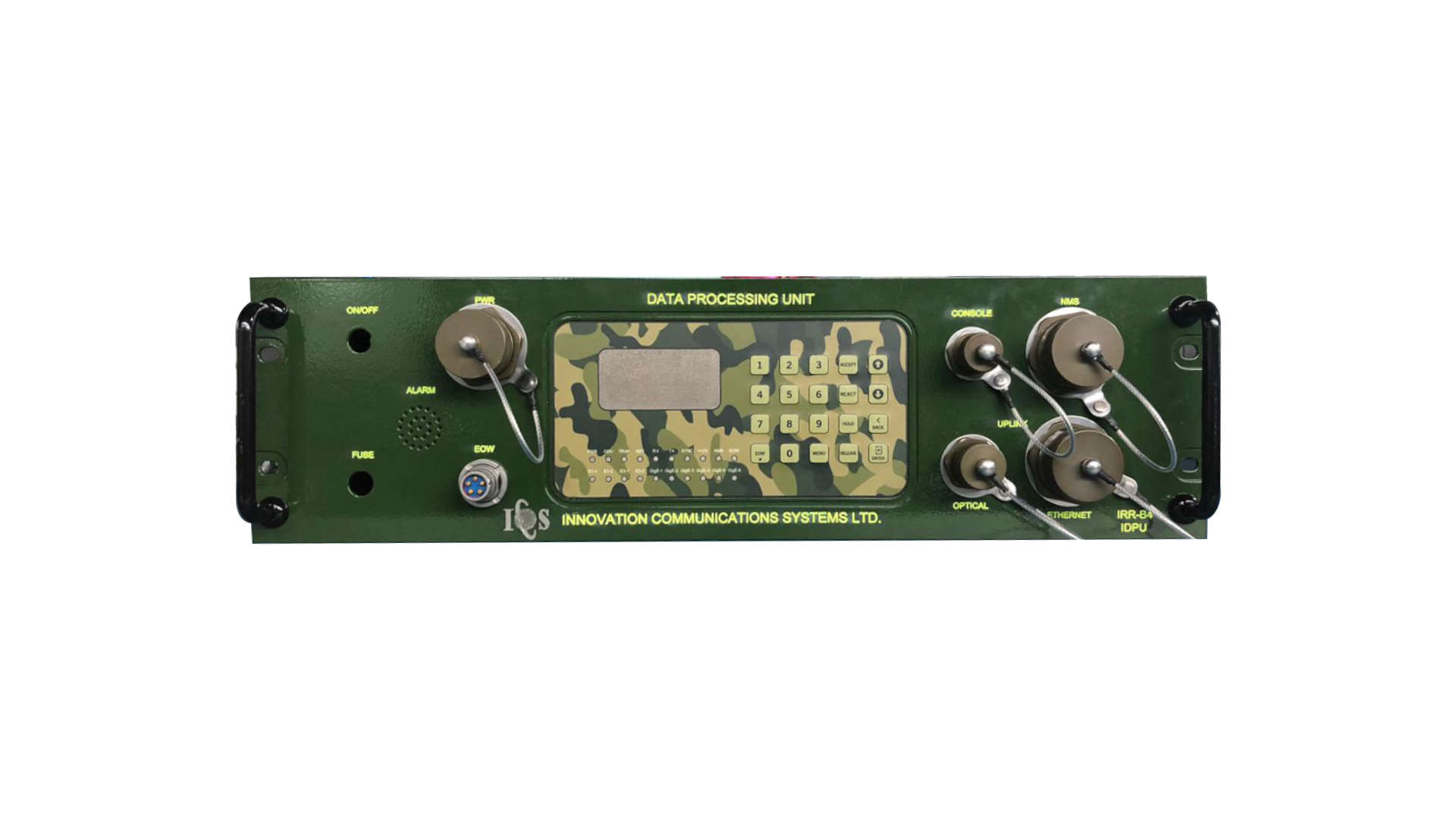

Indoor Data Processing Unit (IDPU)

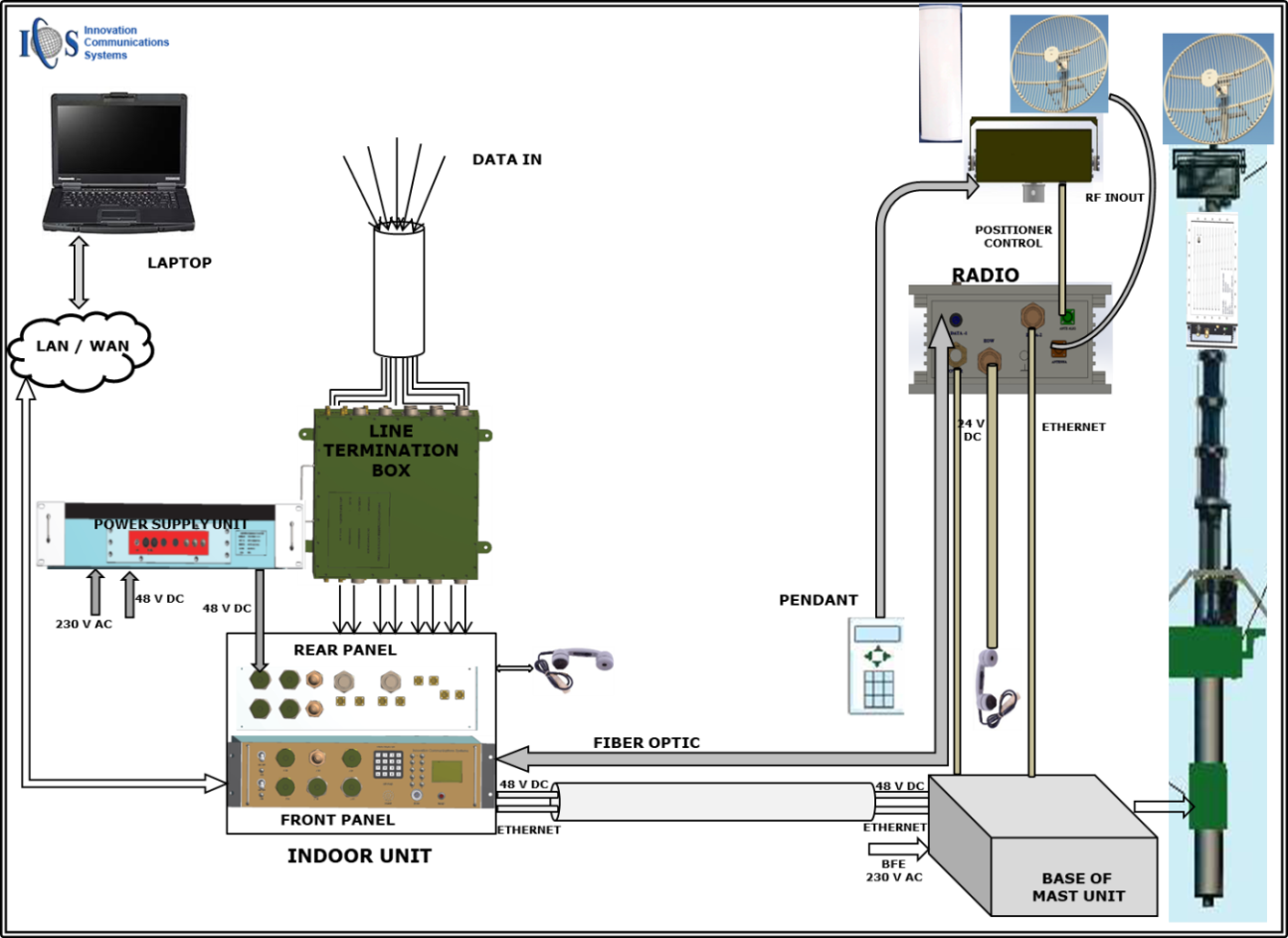

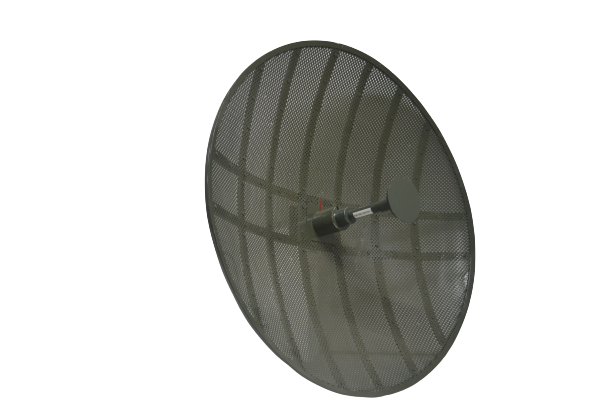

Antenna

ODU POWER SUPPLY

IDPU POWER SUPPLY

Telescopic

Configuration & Features

Indoor Data Processing Unit (IDPU)
Outdoor Radio Unit (ORU)
Telescopic Mast
Antenna Alignment Unit
Antennae (5 deg Grid, 120 deg Sector)
Power Supply Units (PSU)
Cables and Accessories
16 hop frequency spots spread over 4400 MHz to 5000 MHz with a hop rate of 1000 Hops/s
E1, E3 and Ethernet base band interfaces, with both Electrical and Optical connectivity
Point to Point mode for 20 km range for Data Rates of 2, 8, 34, 100 Mbps

GPS for location identification
Point to Multi Point Mode range of 15 km with 8 Mbps aggregated data rate
ECCM
Modem Modulations: QPSK, 16 QAM, 64 QAM
Repeater mode range of 35 km in P2P configuration
Power On Self Test (POST)
Built In Test Equipment (BITE)
Environmental: JSS55555 Std Rev 03

ODU : Class L3
IDU : Class L2B

EMI/EMC : As per MIL 461E
