Intel SBC

The Intel SBC Project consists of Com express module and Altera Cyclone V series FPGA (RIC card). The main application of this project is receives the Radar data in the form of 32 bit data, parity and clock signal. This 32 bit parallel data is captured by FPGA and converted in to serial and sends to Com express (INTEL processor) via 10/100 Ethernet Interface. The Com express module reads data and sends to server via 10/100/1000 G bit Ethernet Interface. Cyclone V FPGA reads the RIC data in the from of RS422 and sends to Com express module in 10/100 Ethernet format .

Intel SBC Intel SBC

Features

  • Intel® Xeon® E3 and 7th gen Intel® Core™ i7/i5/i3 processors (Kaby Lake-H)
  • 2 DDR4-2133 SO-DIMM slots, up to 32GB ECC or non-ECC
  • 1 PCIe x16 and 8 PCIe x1 Gen. 3
  • 4 SATA-600 with RAID 0/1/5/10
  • 4 USB 3.0 and 8 USB 2.0
  • Intel | Altera FPGA with 25 K LE
  • Maximum Operating Frequency of 800 MHz
  • Serial EEPROM
  • 10/100/1000 Ethernet Transceiver
  • RS422 Line Receiver
  • Supports HDMI 1.4 Data Rate

Application

  • RADAR

Specifications

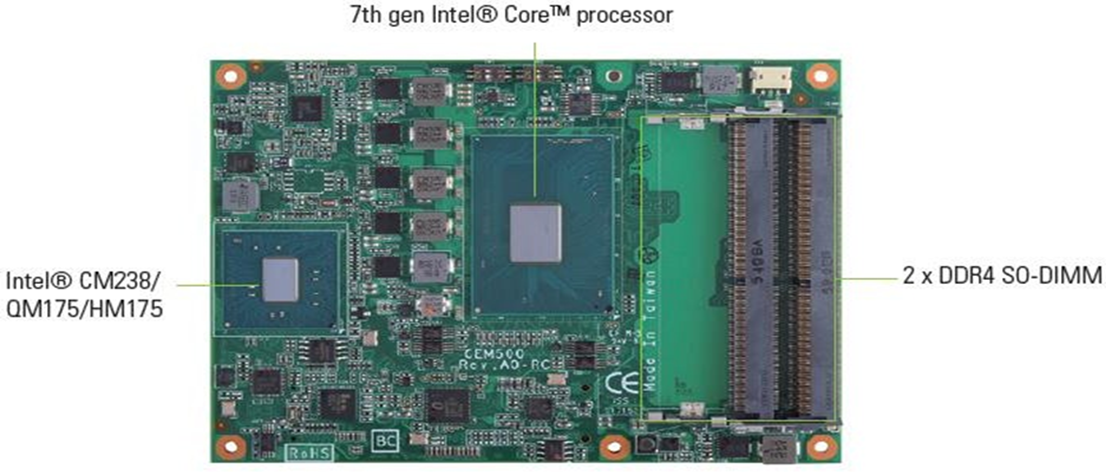

Processor Intel® Xeon® E3 and 7th gen Intel® Core™ i7/i5/i3
Chipset Intel® CM238/QM175/HM175
System Memory 2 x DDR4-2133 SO-DIMM, up to 32GB
Display 1 x LVDS ;18/24-bit single/dual channel; 1 x VGA up to 1920 x 1200 @60 Hz (default); 2 x DDI (DP/HDMI/DVI)
Audio HD link interface to baseboard for Codec
Storage 4 x SATA-600 with RAID 0/1/5/10
Expansion 1 x PCIe x16 Gen 3.0; 8 x PCIe x1 Gen 3.0
Power Input ATX: +12 V, +5 VSB; AT: +12 V
Processor Altera Cyclone V Series FPGA
OS RHEL 7.1(Server with GUI)
Clock Source On board 25 & 33.3 MHz
Bus Interfaces SATA
Ethernet 10/100/1000 base-T interface
VGA Up to 1920 x 1200 @60Hz (default)
USB PORT USB 2.0– 2 Nos; USB 3.0– 1 No
AUDIO Codec High Definition Audio Codec
HDMI Supports HDMI 1.4
Operating Temperature -40ºC ~ +85ºC
