S-Band Power Amplifier

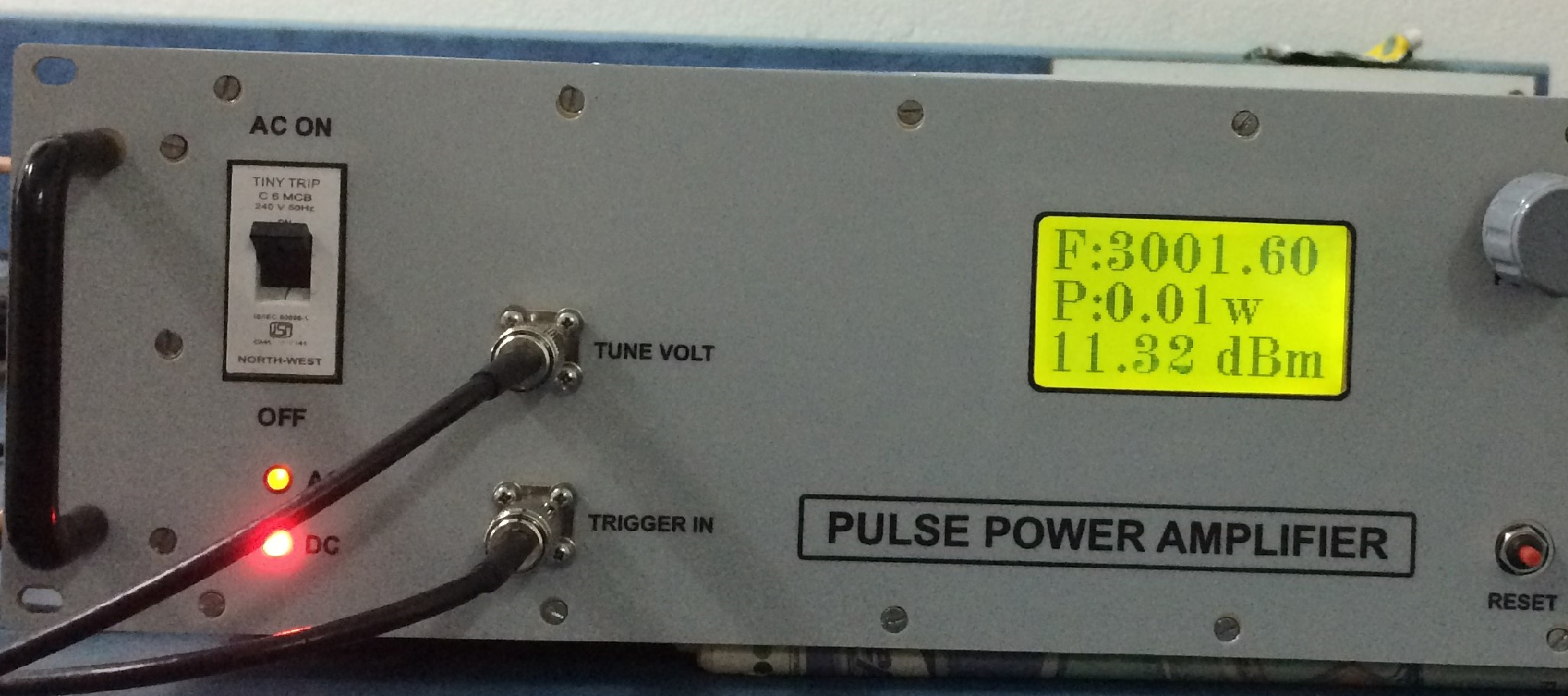

Solid state S - Band Driver operating over 2995.5 to 3001.5 MHz, has capability to deliver up to 200 Watts Pulse Power into 50 ohms load. Power Output level is indicated in a front panel display. The unit operates on 230V, 50Hz, Single phase, AC mains supply. Final amplifier stage has built in heat sink. Power Amplifier can be set to amplification when powered up and valid Trigger Input is fed. Status of the power amplifier is displayed on display. Fault indications are provided on front panel using LEDs.

S-Band Power Amplifier

Features

  • Control Card To Front panel interface For Frequency operation, Power level control
  • Fault conditions observed For PA shut OFF
  • Fault conditions are displayed
  • All R.F. modules Are mounted On A heat sink For better power dissipation
  • Thermal LED, VSWR LED, Trigger LED

Application

  • LINAC Systems

Specifications

Frequency 2998.5 +/-3 MHz
Frequency tuning VCO based
Peak power output 200 Watts (typ) with 12 uSec Pulse width and 300 Hz PRF
Output pulse width 3 to 12 uSec
Accuracy +/-1 Watt
Power control Continuous variation by encoder
PRF 10 to 300 Hz
Impedance 50 Ohms
Operating Temp 10 to 45°C
Pulse rise and fall time 100 nano Sec Max
RF Driver (SYNC) trigger 2 to 12 Volts
Min power output settable 10 Watts
RF OUTPUT N(F)
AC Power Voltage 160-270 Vrms
